Serving the Water Systems Industry - Manufacturing products such as mechanical liquid level controls, backflow preventers, water level sensors, & variable frequency drives
Specifications

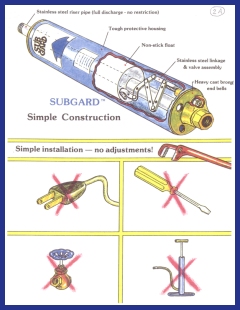

Subgard simple construction

click to enlarge

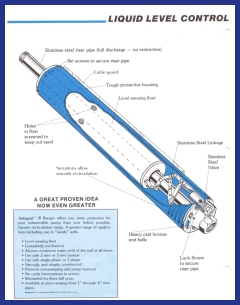

Liquid level control

click to enlarge

click to enlarge

click to enlarge

click to enlarge

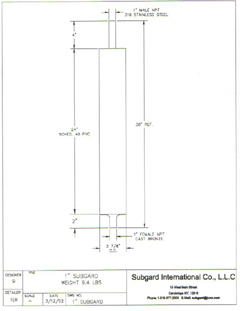

Model 200, 1" and 1 1/4" SUBGARD's

Operate from 10 feet down to 250 feet deep in well
Can re-circulate up tot 20 GPM
Can be installed in well casings as small as 4" (unit is 3 ½" OD)

1" Unit Has a top connection of 1" male stainless steel riser pipe
Has a bottom connection of 1" female bronze casting

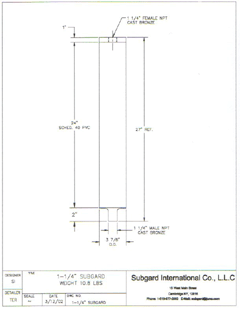

1 ¼" Unit Has a top connection of 1 ¼" female PVC
Has a bottom connection of 1 ¼" male bronze casting
